AGNORA

Digital Printing & Painting on Architectural Glass

AGNORA’s leading edge Dip-Tech NeraD ceramic printer provides incredible imaging possibilities for high-quality architectural glass applications. From printing custom artwork, to bird friendly frit, to entire building murals, AGNORA provides perfectly implemented, permanent, and striking oversize (up to 130" x 300”) custom digital print solutions.

TAKE THIS PAGE WITH YOU.

Download this convenient one-pager regarding SDL Units.

Incredible, permanent digital printing directly on architectural glass.

Specification

Metric Measurement

Imperial Measurement

Maximum Panel Size

Glass Thickness

Recommended Substrate

Glass ceramic ink is fused into the glass during the tempering process

3.3 x 7.5 m

5 to 19mm

Extra-clear (low iron)

130 x 300in

3/16″ to 3/4″

Limitless Design

Any Design Directly on Glass

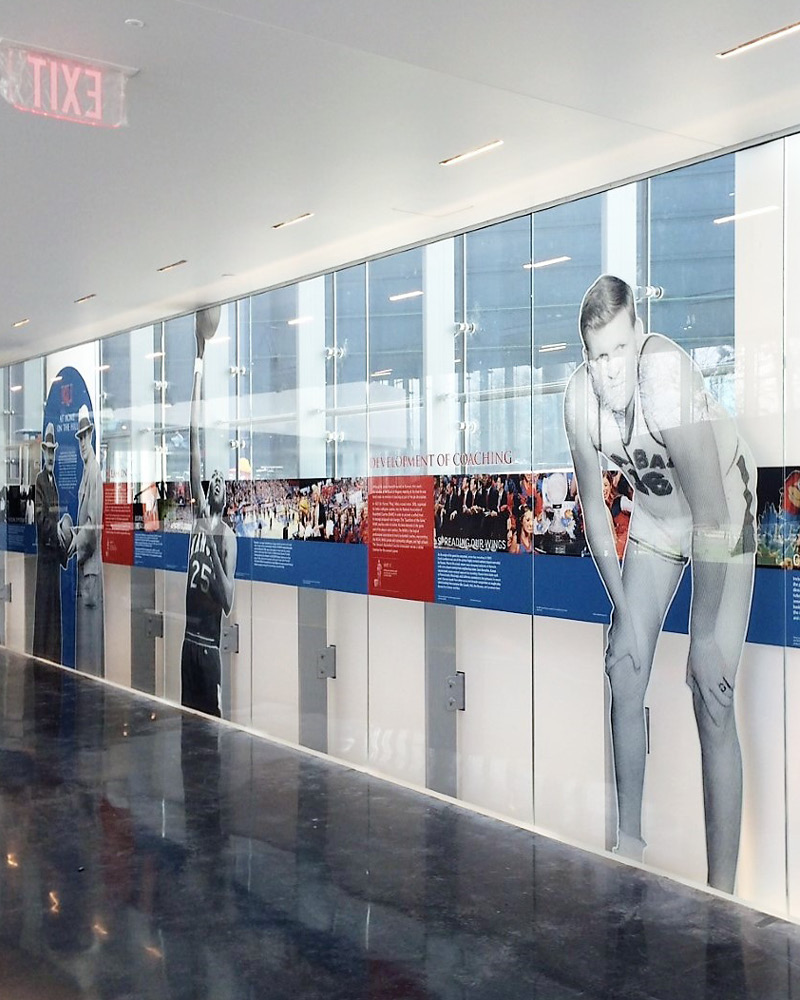

Apply any design, any picture, or any pattern you wish to your glass. Much like your office printer, the digital print process allows you to output anything that you create.

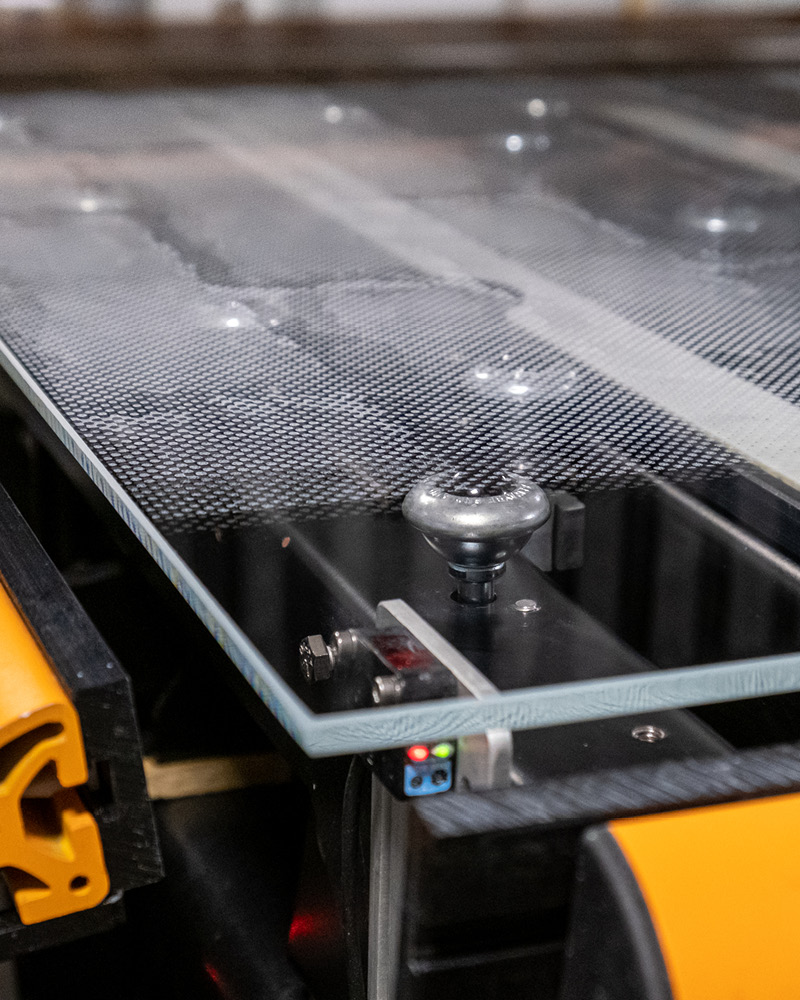

The DipTech NeraD is a robust ceramic printer capable of outputting up to 1440 dpi through 12 ink channels. Using the proprietary DMix colour management system, AGNORA can closely match a wide gamut of colours to match your brand standards or vision.

If we don’t have the right colour for you, AGNORA’s expert print team can create a custom mix for your application and can vary opacities to suit your needs.

Ceramic Inks on Oversized Glass

A Permanent Solution

Ceramic inks require intense heat to fully cure, thus each printed lite undergoes tempering in which the ink fully bonds to the glass, providing incredible durability, fade resistance, and longevity for the life of the glass.

AGNORA’s Dip-Tech NeraD is one-of-a-kind in North America, able to print on glass up to 130” x 300” (3.3 x 7.6m) and thicknesses ranging from 0.2” to 0.75” (5mm to 19mm).

Focus on Knowledge

The Right Industry Experts

AGNORA’s print specialists are extremely detailed and are veterans of the custom print industry. With over 100+ years of combined print experience, we save time and effort by providing industry-leading know-how, yielding a no-surprise outcome for your project.

Ceramic Frit

AGNORA maintains a high-quality glass paint line capable of outputting ceramic frit on architectural glass.  Our paint line can support glass up to 84″ x 300″ (2.1 x 7.6m).   Ceramic frit is a great solution when your project requires:

  • A complex of custom colour
  • Full coverage
  • A structural, permanent colouration

Opacicoat

AGNORA provides ICD Opacicoat coatings for an optimal selection of colours.   Opacicoat is an optimal solution for projects requiring

  • A custom colour that is highly difficult to achieve
  • Full coverage
  • The application is non-structural

See the full range of Opacicoat options.
