Insulated Glass Units

Insulated Glass Units (IGUs) or "windows" come in many forms, thicknesses and finishing types. AGNORA specializes in creating high-quality IGUs for residential, retail and commercial spaces using the newest technology and practices to achieve a higher level of durability, clarity and performance.

TAKE THIS PAGE WITH YOU.

Download this convenient one-pager regarding SDL Units.

North America’s largest, automated IG line.

Specification

Metric Measurement

Imperial Measurement

Overall Thickness

Configuration

Maximum thickness for middle lite

Minimum Dimension

Maximum Dimensions with gas

Maximum Weight

Linear Maximum Weight

Steps



Gas

Sealant

Spacer

12mm to 90mm

Double or triple insulated

6mm

350mm x 180mm

6000mm x 3300mm

2500Kg

200Kg/m

Side 1 – 85mm

Side 2, 3, 4 – No size limit

Argon available for all units (including step units)

DowSil High Modulus silicone 3363, black or grey

All spacers are bent or corner keyed

Aluminum natural

Aluminum black

Stainless steel natural

Stainless steel black

1/2″ to 3-1/2”



1/4″

14” x 7”

236” x 130”

5500Lbs

134Lbs/ft











8, 10, 12, 15, 16, 18, 20mm

8, 10, 12, 15, 16, 18, 20mm

10, 12, 15, 18mm

10, 12, 15, 18mm

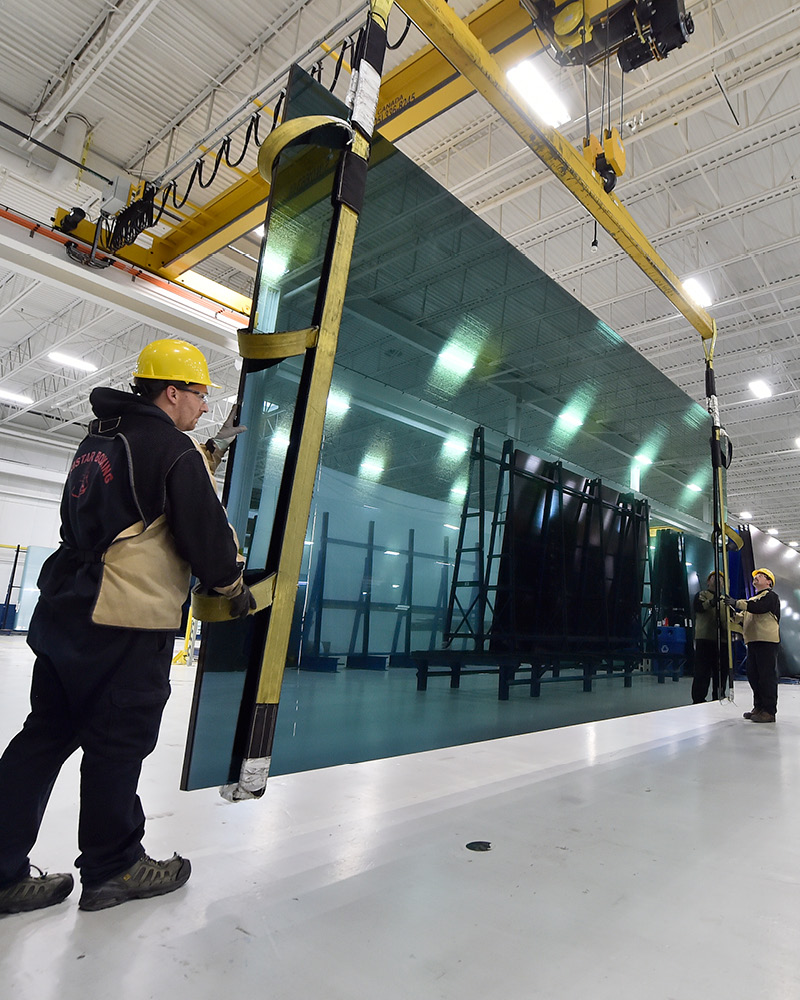

Jumbo, oversized IGUs

The largest in North America

AGNORA is able to produce IGUs up to 130″ x 236″ (3.3 x 6m) on its automated IGU line with argon gas, and up to 130″ x 300″ (3.3 x 7.6m) with standard dry air.  Optionally, beyond 130″ x 236″ (3.3 x 6m) argon may be added manually. This immense capability allows the performance of double or triple glazed IGUs to be utilized in a wide array of high-end homes, retail, and commercial locations.

Durability above the rest

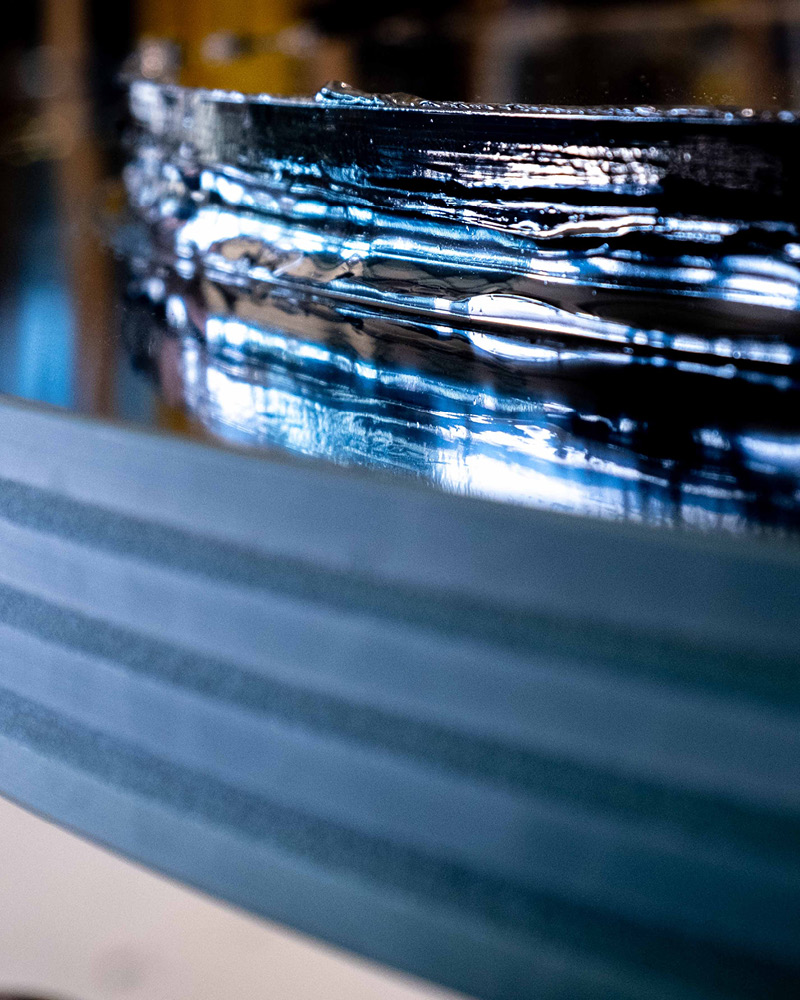

High Modulus Silicon

AGNORA’s High Modulus silicone creates less stress on the PIB primary seal, which translates to longer argon retention.

To continue to add more value and life to the units produced at AGNORA, we use DOW High Modulus silicone (Dowsil 3363), available in black or grey colour configurations. This silicone provides greater tensile strength compared to the leading competitor, translating to 30% less joint movement, thus creating a more durable primary seal and reduced argon loss.  In short, your windows are stronger and more resistant to seal failure.

The reason for using this more complex sealant?  Because every step of our process is about a higher level of quality, leading to increased durability.

Smart Technology

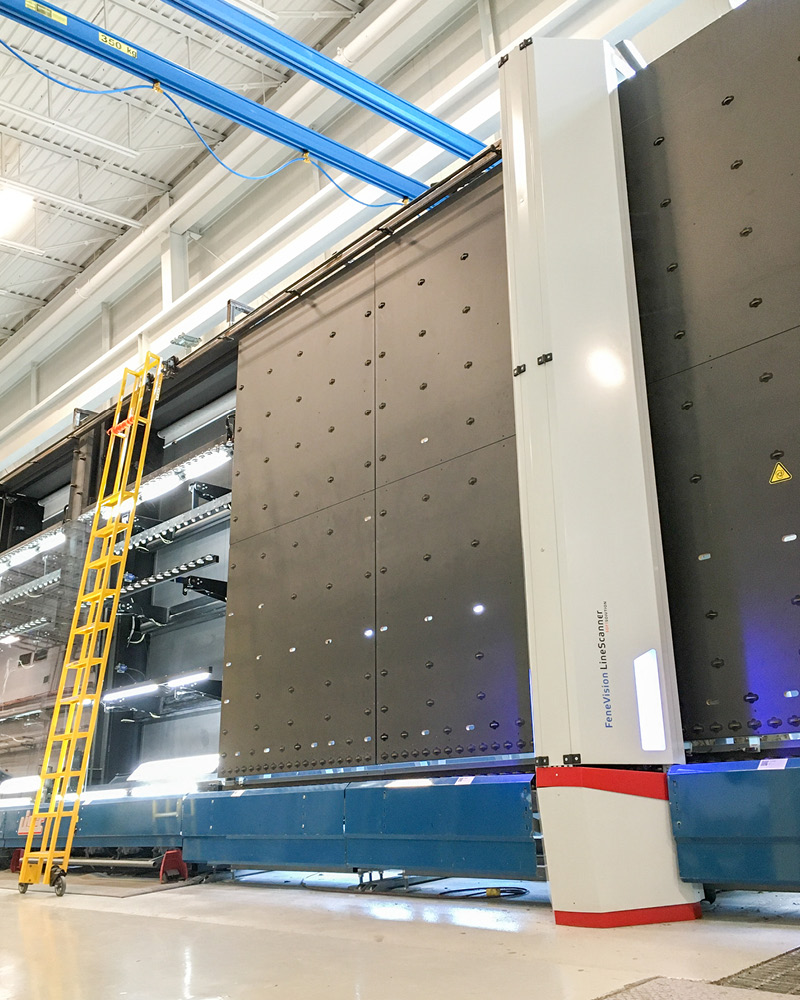

Scanning for Clarity

The use of SoftSolutions in-line scanner allows AGNORA to assess the overall quality of each individual piece of glass.  The scanner captures detailed information regarding surface defects such as hair, dirt, grease, or scratches, but also analyzes the surface of heat-treated glass to ensure the level of anisotropy or “leopard spotting” is agreeable.  All-in-all this technology ensures that the glass you receive is absolutely the best quality and clarity, no exceptions.

Performance Coatings in Stock

AGNORA carries an extensive inventory of glass with varying levels of performance coatings that work in tandem with your project requirements.  The following are examples of our top five (5) requested performance coatings and their maximum available sizes.

  • Saint Gobain | Xtreme 70/33 II Diamant       126″ x 300″ (3.2  x  7.6m)
  • Cardinal | Q272                                                     96″ x 144″ (2.4 x 3.6m)
  • Pilkington | Energy Advantage                          130″ x 240″ (3.3 x 6.1m)
  • Saint Gobain | SKN 076 II Diamant                 126″ x 300″ (3.2 x 7.6m)
  • Saint Gobain | Xtreme 60/28 II                        126″ x 236″ (3.2 x 6m)
Interior mall view of all-glass façade for Samsung consists of oversized/jumbo, insulated, Low-E, glass units with complex, compound curves fabricated by AGNORA
